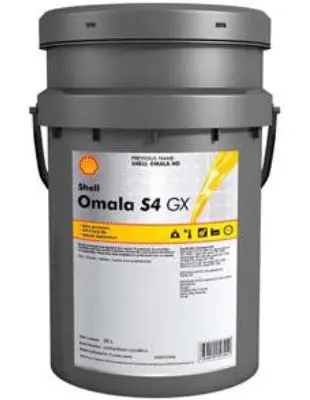

Shell Omala S4 GX Oil
Advanced Synthetic Industrial Gear Oil
Shell Omala S4 GX Oil
♦ EXTRA PROTECTION
♦ EXTRA LIFE
♦ SPECIAL APPLICATIONS
Shell Omala S4 GX 150
Shell Omala S4 GX 220
Shell Omala S4 GX 320
Shell Omala S4 GX 460
Shell Omala S4 GX is an advanced
synthetic heavy duty industrial gear oil offering
outstanding lubrication performance under severe operating conditions, including reduced friction, long service life and high resistance to micro-pitting for optimal gear protection.
♦ Long oil life
Maintenance saving Shell Omala S4 GX is formulated using an advanced
additive system in combination with specially selected synthetic base fluids to provide outstanding resistance to breakdown over long duration and/or
high temperature operation.
This performance is recognised by Flender AG where a formal approval for 20,000 hours (four years) at 80oC usage as been granted.
Shell Omala S4 GX can operate successfully at bulk temperatures up to 120oC.
Shell Omala S4 GX offers the potential to significantly extend service intervals compared to conventional industrial gear oils.
♦ Excellent wear & corrosion protection
Shell Omala S4 GX is formulated to have excellent load carrying capacity and micro-pitting performance providing long component life even under shock loading conditions. These features provide benefits over mineral oil-based products in
terms of gear and bearing component life.
Shell Omala S4 GX also has excellent corrosion protection, even in the presence of contamination by water and solids.
♦ Maintaining system efficiency
Shell Omala S4 GX can help maintain or enhance the efficiency of industrial gear systems through improved low temperature performance and lower friction in comparison to mineral oil-based products. This provides better lubrication at low start-up temperatures.
Shell Omala S4 GX oils have excellent water separation properties, such that excess water can be drained easily from lubrication systems to help extend the life of the gears and ensure efficient lubrication of the contact areas.
♦ Wind turbines and other inaccessible installations Shell Omala S4 GX is particularly recommended for certain systems where extra long life is
required, maintenance is infrequent or systems are inaccessible.
♦ Enclosed industrial gear systems
Recommended for industrial reduction gear systems operating under severe operating conditions, such as high load, very low or elevated temperatures and wide temperature variations
♦ Other applications
Shell Omala S4 GX oils are suitable for lubrication of bearings and other components in circulating and splash-lubricated systems For highly loaded worm drives the Shell Omala “W©? series oils are recommended.
For automotive hypoid gears, the appropriate Shell Spirax Oil should be used.
Specifications and Approvals
Meets ISO 12925-1 Type CKD, except ISO 1000
Meets ANSI/AGMA 9005-E02 (EP), except ISO 1000
Meets US Steel 224, except ISO 1000
Fully approved by Flender AG
Meets David Brown S1.53.106, except ISO 1000
Meets DIN 51517-3 (CLP), except ISO 1000
Approved for wind turbine gearboxes by:
Dongfang Wind Turbines
Dalian Heavy Industries
Health and Safety
Guidance on Health and Safety is available on the appropriate Material Safety Data Sheet, which can be obtained from your Shell representative.
Protect the Environment
Take used oil to an authorised collection point. Do not discharge into drains, soil or water.
Check compatibility with other products before use. Advice on applications not covered in this leaflet may be obtained from your Shell representative.
